Standard-TDS
TDS-9.5C SR

  • Heavy duty series wound motor delivers superior torque output and faster line speed.
  • 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
  • Automatic,double cone brake.
  • Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
  • Installation ,operation and maintenance with ease.

    Detailed Data:
    SPECIFICATION
    Line pull:4,309kgs/9,500lbs
    Motor: 12V/5.0HP 24V/3.0HP
    Gear Train: Three stage
    Gear Ratio173:1
    Freespooling Clutch: Rotating ring gear
    Synthetic Rope Size: Φ11/31"×100'(Φ9.0mm×30m)
    Drum Size: Φ2.5"×9"(Φ63.5mm×229mm)

    LINE PULL
    Layer of Synthetic Rope Max Line Pull
    1 9,500lbs/4,309kgs
    2 7,800lbs/3,500kgs
    3 6,550lbs/2,977kgs
    4 5,700lbs/2,578kgs

    LINE SPEED AND AMP DRAW(1st layer of Synthetic Rope on the drum)
    Load Line Speed AMP Draw(12V) AMP Draw(24V)
    No Load 55.8FPM/17MPM 60 40
    2,000lbs/907kgs 14.7FPM/4.5MPM 140 106
    4,000lbs/1,814kgs 12.5FPM/3.8MPM 181 158
    6,000lbs/2,722kgs 8.9FPM/2.7MPM 248 187
    8,000lbs/3,650kgs 8.2FPM/2.5MPM 295 226
    9,500lbs/4,309kgs 7.5FPM/2.3MPM 338 259

    DIMENSIONS(mm)



    STANDARD ACCESSORIES
    Controller                         TA-0906
    Synthetic Rope With Hook

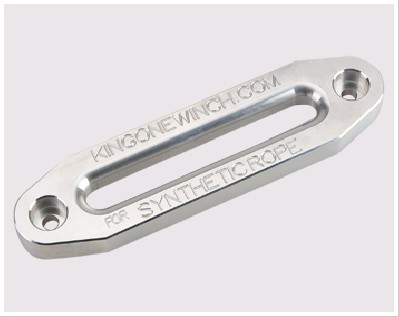

    Hawse fairlead                 TA-0921
    Control Unit                      TA-0910/12V     TA-0910/24V
    Mounting Hardware
    Handsaver Strap


    PACKAGE
    Winch weight : 33kgs/72.6lbs
    Gross Weight : 35kgs/77lbs
    Box Dimension : 647×198×440 mm(25.5"×7.8"×17.3")
