Standard-TDS
TDS-6.5 SR

  • Heavy duty series wound motor delivers superior torque output and faster line speed.
  • 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
  • Automatic,double cone brake.
  • Rotating ring gear clutch have the freespooling positioned actually for the rapid pay out of wire rope with ease.
  • Installation ,operation and maintenance with ease.

    Detailed Data:
    SPECIFICATION
    Line pull:2,955kgs/6,500lbs
    Motor: 12V/4.0HP
    Gear Train: Three stage
    Gear Ratio173:1
    Freespooling Clutch: Rotating ring gear
    Synthetic Rope Size: Φ2/7"×80'(Φ7.2mm×30m)
    Drum Size: Φ2.5"×9"(Φ63.5mm×229mm)

    LINE PULL
    Layer of Synthetic Rope Max Line Pull
    1 6,500lbs/2,955kgs
    2 5,000lbs/2,300kgs
    3 4,300lbs/2,000kgs
    4 3,800lbs/1,700kgs

    LINE SPEED AND AMP DRAW(1st layer of Synthetic Rope on the drum)
    Load Line Speed AMP Draw(12V)
    No Load 59FPM/16MPM 70
    2,000lbs/907kgs 16.4FPM/5MPM 150
    4,000lbs/1,814kgs 13FPM/4MPM 240
    6,500lbs/2,955kgs 8.2FPM/2.5MPM 380

    DIMENSIONS(mm)



    STANDARD ACCESSORIES

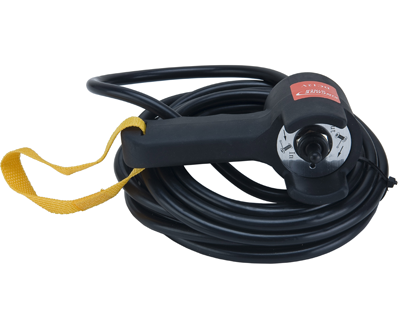

    Controller                       TA-0906
    Synthetic Rope With Hook
    Hawse fairlead               TA-0921
    Control Unit                    TA-0909/12V
    Mounting Hardware
    Handsaver Strap


    PACKAGE
    Winch Weight : 30kgs/66lbs
    Gross Weight : 35.5kgs/78.1lbs
    Box Dimension : 647×198×410 mm(25.5"×7.8"×16.1")
