HYDRAULIC WINCHES
KHD-10 SR

  • Smooth running over the entire speed range.
  • Highly efficient, constant operating torque motor.
  • Rotating ring gear frees pooling clutch is a pull and turn design for rapid wire rope payout.
  • Freespooling. Power in/out. Mechanical lock. Stainless steel tie bars . Reversible mounting.
  • Variable speed hydraulic winch.

    Detailed Data:
    SPECIFICATION
    Line pull:756kgs/1,667lbs(high) 4,535kgs/10,000lbs(low)
    Operation Pressure: 175bar/2,537psi
    Max Oil Flow: 15.9g/min(60l/min)
    Gear RatioFree 1:1(HIGH) 6:1(LOW)
    Synthetic Rope Size: Φ11/28"×90'(Φ10mm×27.4m)
    Drum Size: Φ2.5"×8.4"(Φ63.5mm×215mm)
    Gear Train: Planetary

    LINE PULL AND LINE SPEED(1st layer of Synthetic Rope on the drum)(please use under when the max line pull is 10,000lbs,pressure is 175 bar and flow is 30l/min.)
    Layer of Wire Rope Max Line Pull(1:1) Line Speed(1:1) Max Line Pull(6:1) Line Speed(6:1)
    1 1,667Lbs/756Kgs 134.5FPM/41MPM 10,000Lbs/4,535Kgs 21.3FPM/6.5MPM
    2 1,389Lbs/630Kgs 161FPM/49MPM 8,320Lbs/3,770Kgs 26.2FPM/8MPM
    3 1,212Lbs/550Kgs 183.7FPM/56MPM 7,120Lbs/3,330Kgs 30.5FPM/9.3MPM
    4 1,058Lbs/480Kgs 209FPM/64MPM 6,200Lbs/2,812Kgs 36.1FPM/11MPM
    5 922Lbs/450Kgs 223FPM/68MPM 5,500Lbs/2,490Kgs 37FPM/11.3MPM

    DIMENSIONS(mm)



    STANDARD ACCESSORIES

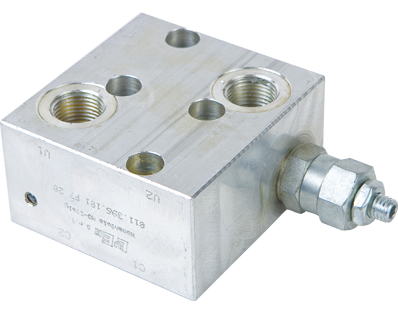

    Over Center Valve              TA-0918
    Coupling                             TA-0928
    Hawse Fairlead                   TA-0921

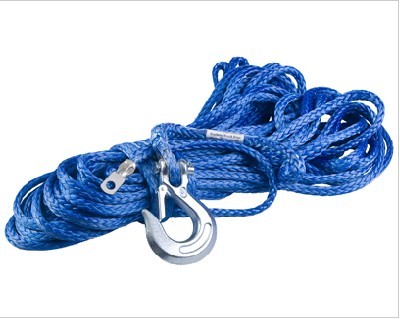

    Synthetic Rope                    TA-1107
    Hook                                   TA-0401

    OPTIONAL ACCESSORIES
    High Pressure Hose             TA-0929
    Base Plate                           TA-0927

    PACKAGE
    Winch weight : 31.5kgs/69lbs
    Gross Weight : 35kgs/77lbs
    Box Dimension : 570×245×305 mm(22.4"×9.6"×12")
