Standard-KDS
KDS-8.0

  • Heavy duty series wound motor delivers superior torque output and faster line speed.
  • 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
  • Braking by flanges transmission.
  • Rotating ring gear clutch have the freespooling positioned actually for the rapid pay out of wire rope with ease.
  • Installation ,operation and maintenance with ease.
  • It's total length is 520mm(20.5").

    Detailed Data:
    SPECIFICATION
    Line pull:3,629kgs/8,000lbs
    Motor: 12V/4.6HP
    Gear Train: Three stage
    Gear Ratio173:1
    BrakeFlanges brake
    Freespooling Clutch: Rotating ring gear
    Wire Rope Size: Φ5/16"×80'(Φ8.0mm×24m)
    Wire Rope Type: Aircraft A7×19
    Drum Size: Φ2.5"×9"(Φ63.5mm×229mm)

    LINE PULL
    Layer of Wire Rope Max Line Pull
    1 8,000lbs/3,629kgs
    2 6,557lbs/2,974kgs
    3 5,510lbs/2,499kgs
    4 4,790lbs/2,173kgs

    LINE SPEED AND AMP DRAW(1st layer of rope on the drum)
    Load Line Speed AMP Draw(12V)
    No Load 46FPM/14MPM 65
    2,000lbs/907kgs 14.8FPM/4.5MPM 120
    4,000lbs/1,814kgs 11.5FPM/3.5MPM 190
    6,000lbs/2,721kgs 6.5FPM/2.0MPM 270
    8,000lbs/3,650kgs 5.9FPM/1.8MPM 380

    DIMENSIONS(mm)



    STANDARD ACCESSORIES

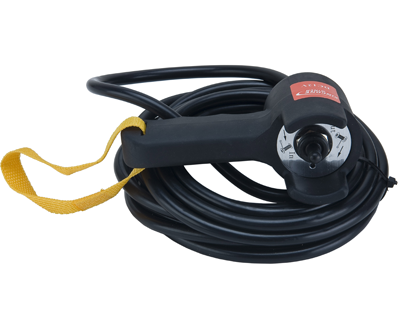

    Controller                      TA-0906
    Wire Rope With Hook

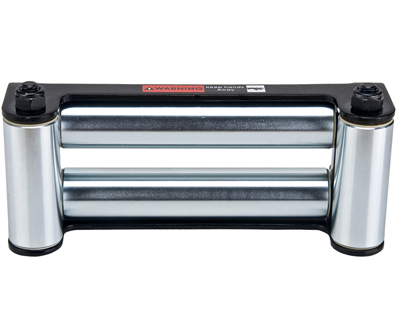

    4 Way Roller Fairlead    TA-0903

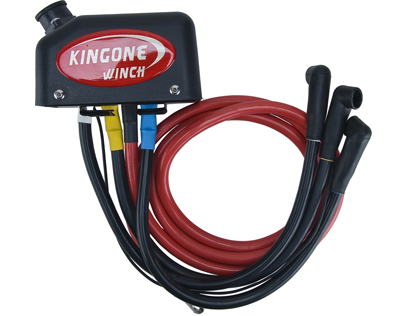

    Control Unit                   TA-0909
    Mounting Hardware
    Handsaver Strap

    PACKAGE
    Winch weight : 39kgs/85.8lbs
    Gross Weight : 44.5kgs/97.9lbs
    Box Dimension : 560×198×405 mm(22"×7.8"×16")
