Premium-UTV
UTV-3500 SR
  • Permanent magnet motor delivers superior torque output and faster line speed.
  • 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
  • Automatic,flat brake.
  • Rotating ring gear clutch have the freespooling positioned actually for the rapid pay out of wire rope with ease.
  • Installation ,operation and maintenance with ease.
Detailed Data:
SPECIFICATION
Line pull:1,587kgs/3,500lbs
Motor: 1.2HP
Brake: 100% full load double cone braking
Gear Ratio: 166:1
Synthetic Rope Size: Φ4.5mm×15M

LINE PULL
Layer of Synthetic Rope Max Line Pull
1 3,500lbs/1,587kgs
2 3,010lbs/1,365kgs
3 2,650lbs/1,202kgs
4 2,360lbs/1,070kgs

LINE SPEED AND AMP DRAW(1st layer of Synthetic Rope on the drum)
Load Line Speed AMP Draw(12V) AMP Draw(24V)
No Load 24FPM/7.4MPM 25 13
2,000lbs/907kgs 13.1FPM/4.0MPM 115 60
3,500lbs/1,587kgs 6.0FPM/2.0MPM 200 115

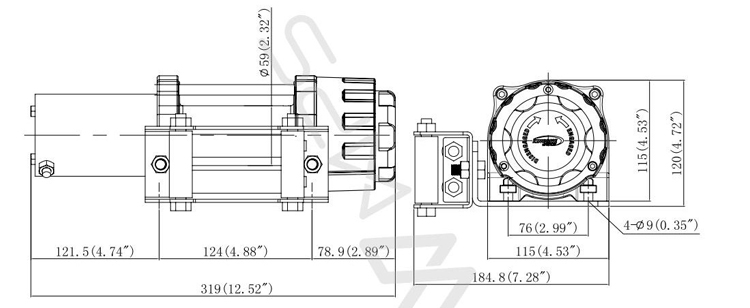

DIMENSIONS(mm)

STANDARD ACCESSORIES

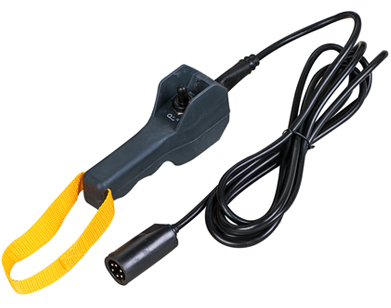

Controller

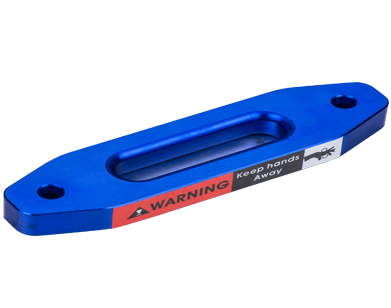

Hawse fairlead

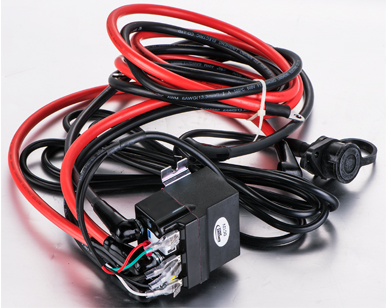

Control Unit
Handsaver Strap
Base Frame
Mounting Hardware
Synthetic Rope With Hook

PACKAGE
Winch Weight : 10kgs/22lbs
Gross Weight : 12.5kgs/27.5lbs
Box Dimension : 390×209×235 mm(14.1"×8.2"×10.1")
