Standard-ORCA
ORCA 11.0 SR
  • Heavy duty series wound motor delivers superior torque output and faster line speed.
  • 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
  • Automatic,double cone brake.
  • Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
  • Installation ,operation and maintenance with ease.
Detailed Data:
SPECIFICATION
Line pull:4,990kgs/11,000lbs
Motor: 12V/24V series wound
Brake: 100% full load double cone braking
Gear Ratio: 206:1
Synthetic Rope Size:Φ9.5mmx27M(Φ3/8"x90')

LINE PULL
Layer of Wire Rope Max Line Pull
1 11,000lbs/4990kgs
2 8647lbs/3922kgs
3 7123lbs/3230kgs
4 6056lbs/2747kgs

LINE SPEED AND AMP DRAW(1st layer of rope on the drum)
Load Line Speed AMP Draw(12V) AMP Draw(24V)
No Load 36FPM/11MPM 65 40
4,000lbs/1,814kgs 19.7FPM/6MPM 170 90
9,500lbs/4,309kgs 6.2FPM/1.9MPM 310 145
11,000lbs/4,990kgs 3.7FPM/1.13MPM 395 205

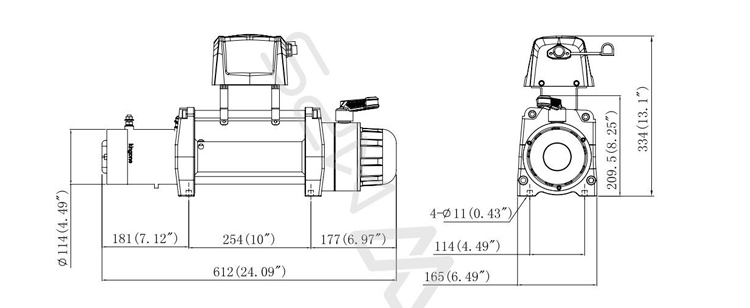

DIMENSIONS(mm)

STANDARD ACCESSORIES

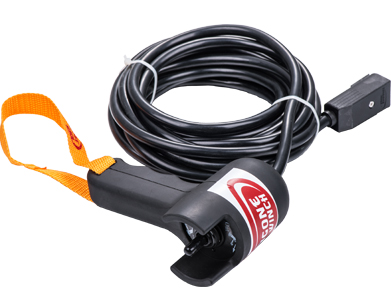

Controller
Synthetic Rope With Hook

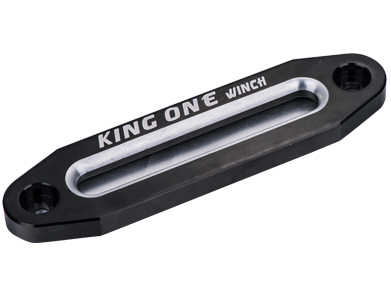

Hawse fairlead

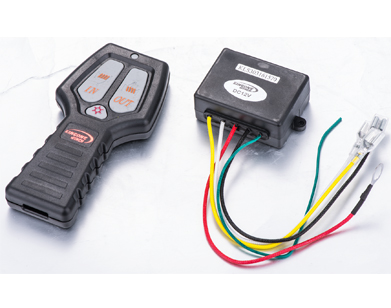

Control Unit
Mounting Hardware
Handsaver Strap

PACKAGE
Winch weight : 34kgs
Gross Weight : 36kgs
Box Dimension : 647×198×410 mm(25.5"×7.8"×16.1")
