Premium-ATV
ATV-4000C

  • Heavy duty series wound motor delivers superior torque output and faster line speed.
  • 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
  • Automatic,double cone brake.
  • Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
  • Installation ,operation and maintenance with ease.

Detailed Data:
SPECIFICATION
Line pull:1,814kgs/4,000lbs
Motor: 12V/1.6HP 24V/1.0HP
Gear Train: Three stage
Gear Ratio187:1
Freespooling Clutch: Rotating ring gear
Wire Rope Size: Φ7/32"×50'(Φ5.5mm×15.2m)
Wire Rope Type: Aircraft A7×19
Drum Size: Φ2.3"×5.2"(Φ59mm×131.5mm)

LINE PULL
Layer of Wire Rope Max Line Pull
1 4,000lbs/1,814kgs
2 3,735lbs/1,694kgs
3 3,188lbs/1,446kgs
4 2,780lbs/1,261kgs

LINE SPEED AND AMP DRAW(1st layer of rope on the drum)
Load Line Speed AMP Draw(12V) AMP Draw(24V)
No Load 19FPM/5.8MPM 25 13
500lbs/230kgs 12.8FPM/3.9MPM 45 26
1,000lbs/450kgs 11.2FPM/3.4MPM 80 45
1,500lbs/680kgs 10.2FPM/3.1MPM 120 60
2,000lbs/900kgs 9.5FPM/2.9MPM 160 89
2,500lbs/1,140kgs 9.0FPM/2.7MPM 210 120
3,000lbs/1,363kgs 7.9FPM/2.4MPM 235 130
3,500lbs/1,588kgs 7.2FPM/2.2MPM 250 135
4,000lbs/1,814kgs 6.6FPM/2.0MPM 278 145

DIMENSIONS(mm)



STANDARD ACCESSORIES

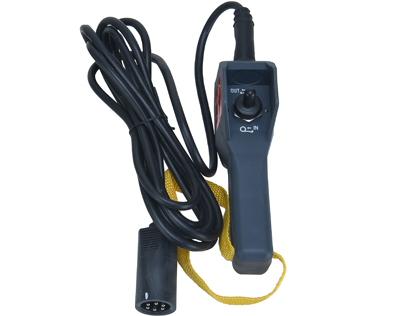

Controller                   TA-0508

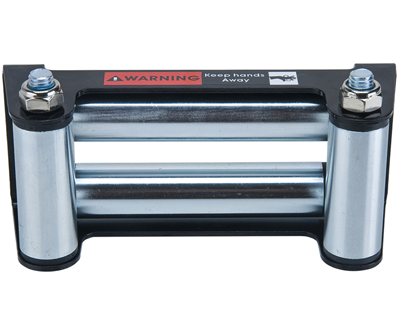

4 Way Roller Fairlead TA-0905
Control Unit                TA-0511
Handsaver Strap

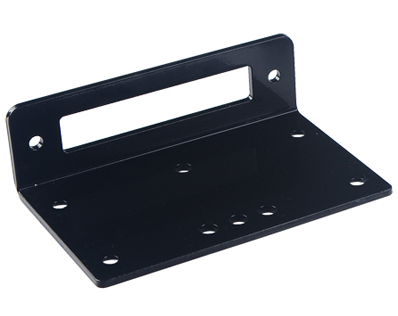

Base Frame                TA-0304
Mounting Hardware
Wire Rope With Hook

PACKAGE
Winch weight : 14.97kgs/32.9lbs
Gross Weight : 16.96kgs/37.3lbs
Box Dimension : 430×225×235 mm(16.9"×8.9"×9.3")
