Standard-TDS
TDS-20.0 SR
  • Heavy duty series wound motor delivers superior torque output and faster line speed.
  • 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
  • Automatic,double cone brake.
  • Rotating ring gear clutch have the freespooling positioned actually for the rapid pay out of wire rope with ease.
  • Installation ,operation and maintenance with ease.
Detailed Data:
SPECIFICATION
Working Load:9072kgs/20,000lbs
Gear Ratio: 315:1
Synthetic Rope Size:  Φ8/17"×83'(Φ12mmx25m)
Motor: 12V/6.2HP 24V/4.0HP

LINE PULL
Layer of Wire Rope Max Line Pull
1 20,000lbs/9,072kgs
2 15,380lbs/6,976kgs
3 13,100lbs/5,942kgs
4 11,300lbs/5,125kgs

LINE SPEED AND AMP DRAW(1st layer of rope on the drum)
Load Line Speed AMP Draw(12V) AMP Draw(24V)
No Load 26.2FPM/8MPM 60 30
2,000lbs/907kgs 23.3FPM/4.2MPM 100 60
4,000lbs/1,814kgs 10.5FPM/3.19MPM 125 85
6,000lbs/2,721kgs 9.2FPM/2.8MPM 155 110
8,000lbs/3,628kgs 8.2FPM/2.5MPM 180 130
10,000lbs/4,536kgs 6.6FPM/2.0MPM 215 155
12,500lbs/5,670kgs 6.3FPM/1.92MPM 250 165
14,000lbs/6,350kgs 5.9FPM/1.79MPM 270 175
16,500lbs/7,484kgs 5.5FPM/1.67MPM 290 190
18,000lbs/8,165kgs 4.6FPM/1.41MPM 320 220
19,000lbs/8,618kgs 3.8FPM/1.16MPM 340 240
20,000lbs/9,072kgs 3.2FPM/0.97MPM 360 270

DIMENSIONS(mm)



STANDARD ACCESSORIES
Controller                   TA-0906
Control Unit                TA-0911
Mounting Hardware
Handsaver Strap
Synthetic Rope            TA-1109

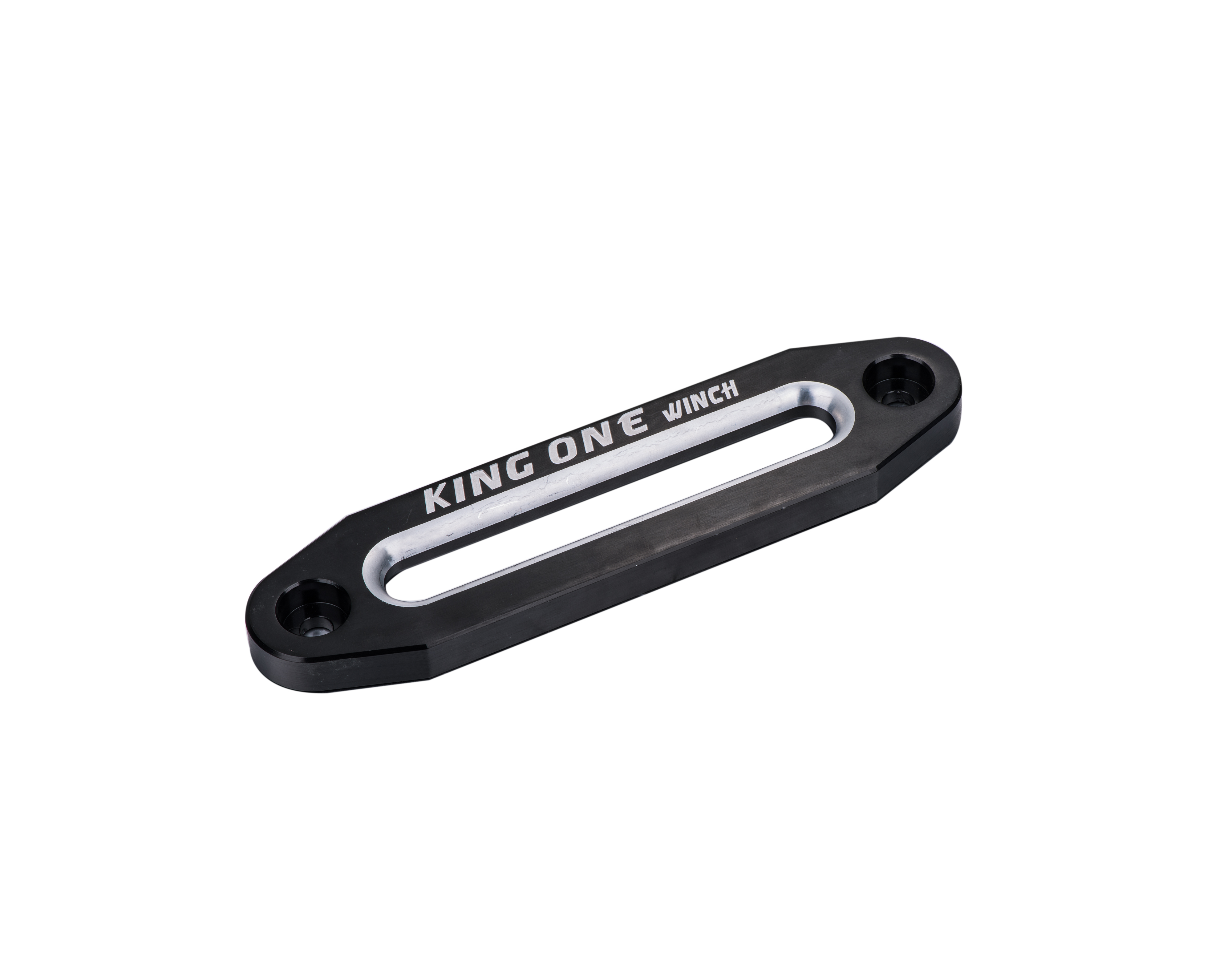

Hawse fairlead            TA-0921
Hook                           TA-0405

PACKAGE
Winch weight : 50kgs/110.2lbs
Gross Weight : 57kgs/125.7lbs
Box Dimension : 710×255×450 mm(28"×10"×17.7")
